UniQube SQ-BPS
Solar Storage Tank - Stratified Separator Storage Tank
UniQube SQ-BPS
Solar heat can be transferred and stored into the storage tanks and ready to be used on demand. Only high energy efficiency tank is guaranteeing low heat loss.
It can be used for heating domestic water and for support of heating systems.
- Solar storage tank
- Stand-alone storage tank
- Buffer storage tank
- Hydraulic separator storage tank

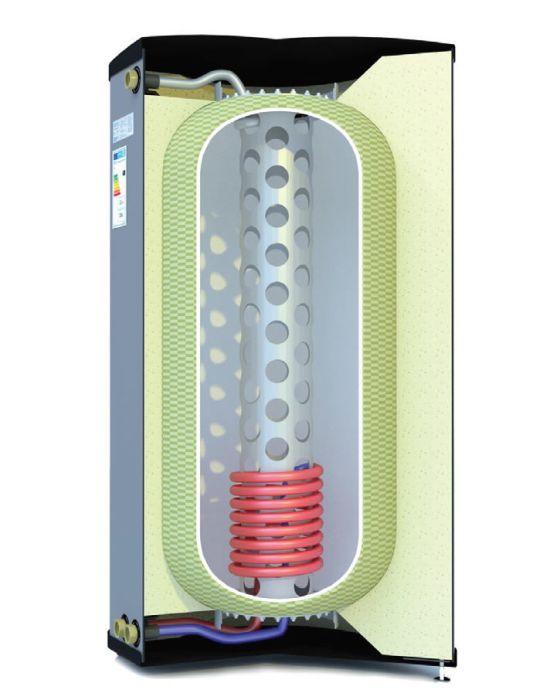

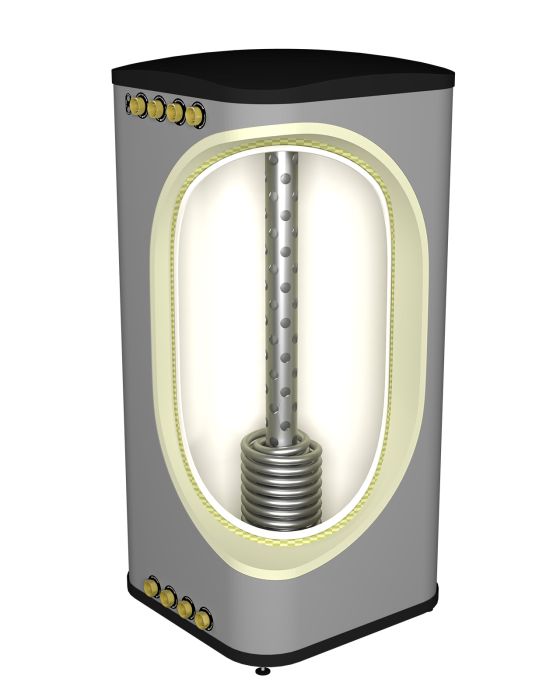

Stratified Solar storage tank function
Solar heat can be transferred and stored into the storage tanks and ready to be used on demand. Only high energy efficiency tank is guaranteeing low heat loss.
It can be used for heating domestic water and for support of heating systems.
- solar heat exchanger made of stainless steel INOX 316 L corrugated pipe
- device for stratification of the heat
- hydraulic separator between the heat source circuit and the heating circuit
- equipped with three sleeves for sensors
- polyurethane high quality insulation, specific in very limited fire contribution, class B2 according to DIN 4102
- all flanges are replaceable and it can be modified to any other type of storage tank if necessary

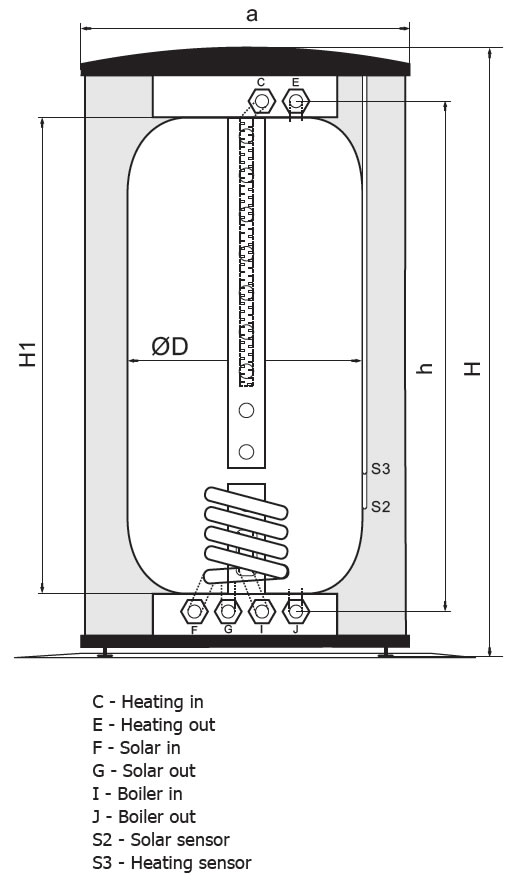

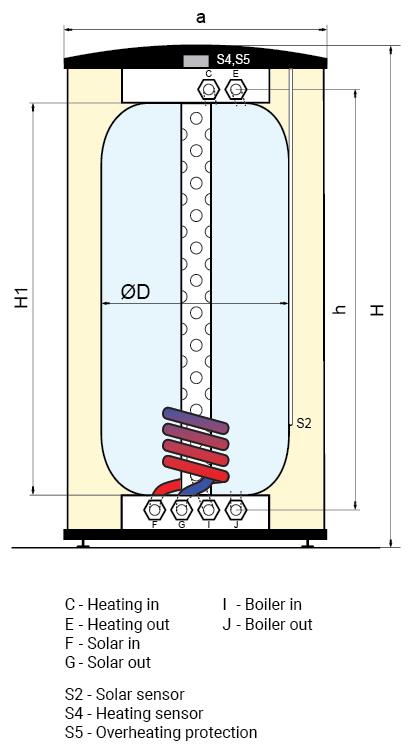

| UniQube SQ-BPS | 310 | 440 | 800 | |
|---|---|---|---|---|
| D (diameter) | (mm) | 620 | 620 | 890 |
| H1 (height) | (mm) | 1300 | 1730 | 1730 |
| h (connectors) | (mm) | 1320 | 1750 | 1750 |
| H (height) | (mm) | 1570 | 2000 | 2000 |
| a (width) | (mm) | 725 | 725 | 960 |
| Pivot measurement | (mm) | 1730 | 2130 | 2219 |
| Net tank capacity | (l) | 305 | 432 | 784 |
| Approx. weight | (kg) | 91 | 114 | 137 |
| Connections C, E, I, J | 5/4" | |||
| Max. working temp. | (°C) | 90 | ||
| Max. working pressure | (bar) | 6 | ||
| Max. test pressure | (bar) | 9 | ||
| S2 Solar sensor position | (mm) | 1110 | 1550 | 1550 |
| S4 Heating sensor position | (mm) | 140 | 140 | 140 |
| S5 Overheating protection | (mm) | 140 | 140 | 140 |
| Solar Heat Exchanger | ||||
| Connections F, G | 5/4" | |||
| Capacity | (l) | 2,85 | 4,12 | 4,12 |
| Output area | (m²) | 1,05 | 1,43 | 1,43 |
| Nominal flow rate | (l/min) | 20 | ||
| Max. flow rate | (l/min) | 30 | ||
| Max. working pressure | (bar) | 10 | ||
| Max. test pressure | (bar) | 15 | ||
Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
