UniQube SQ-BP
Stratified Separator Storage Tank
UniQube SQ-BP

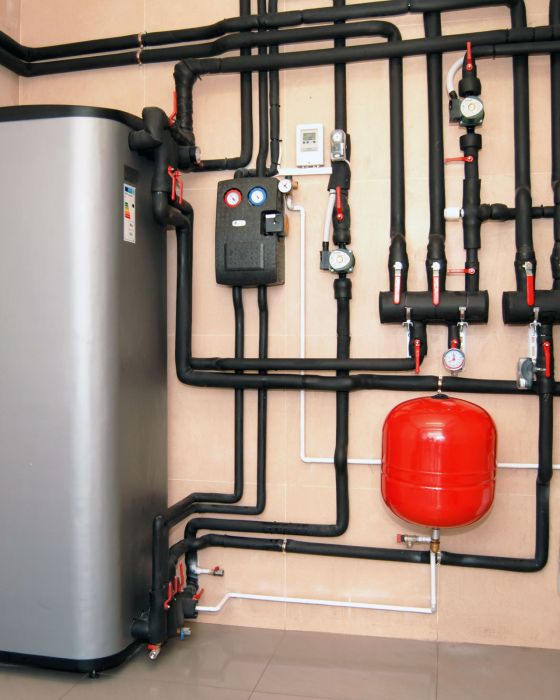

Separator storage tank combined with stratification unit is ideal to hydraulically separate the heat source circuit and the heating circuit which results in easy control over the circulating pumps and improves their lifetime.
Its functionality is based on a hydraulic separator principle.
- Stand-alone storage tank
- Buffer storage tank
- Hydraulic separator storage tank

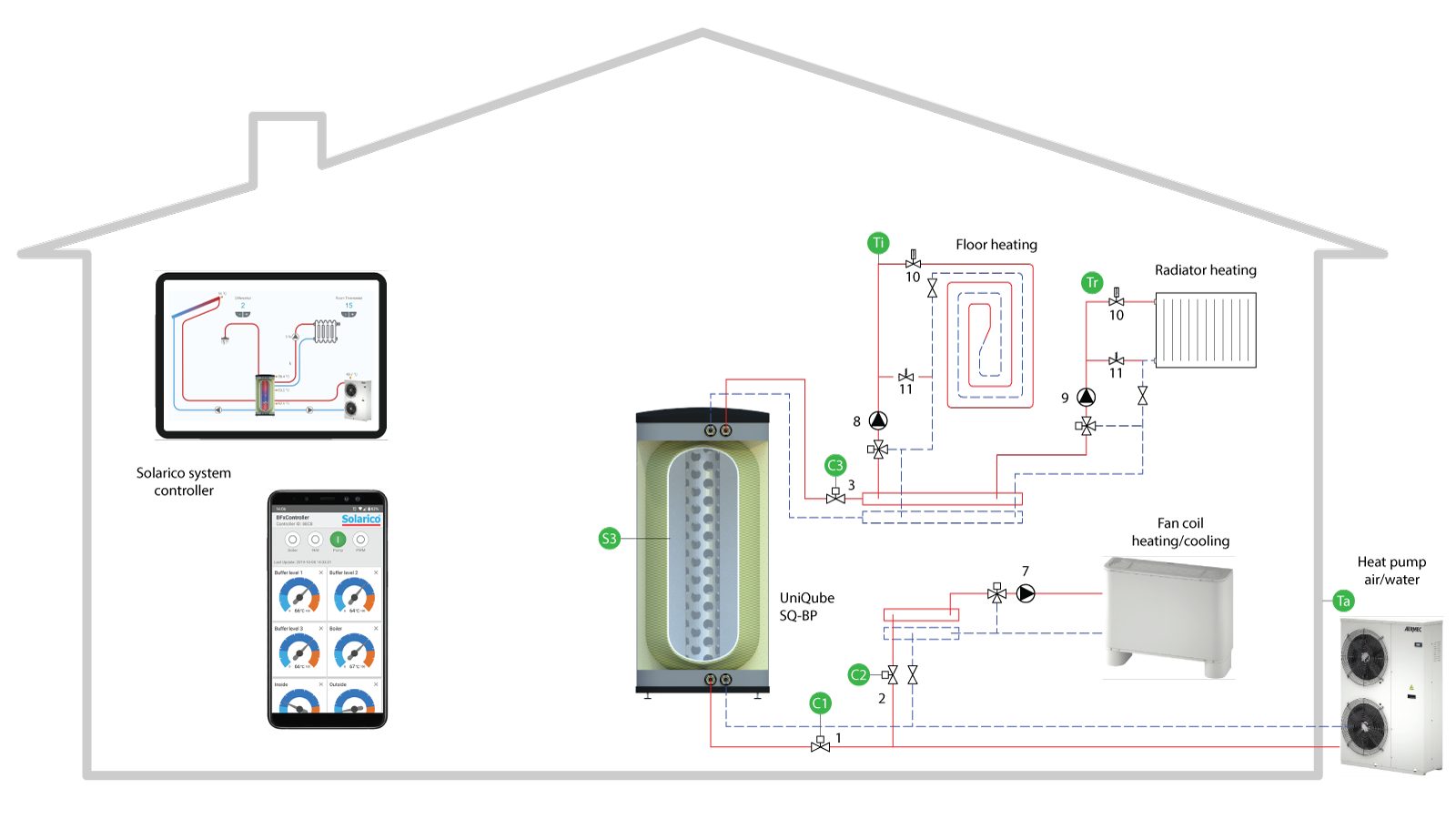

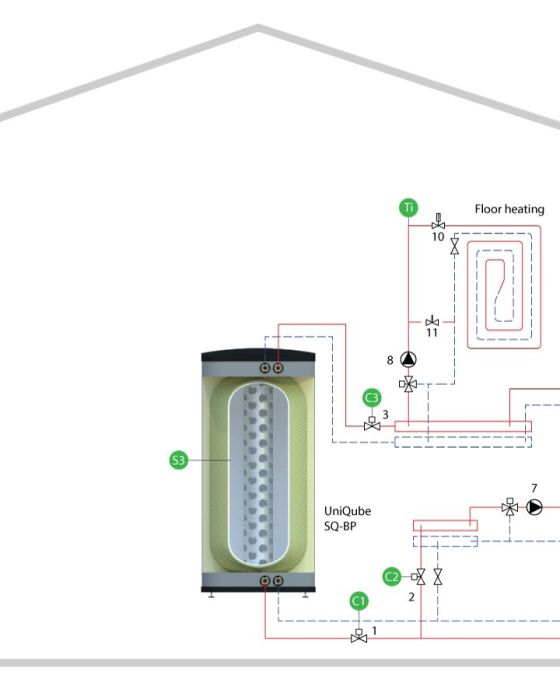

Hydraulic Separator storage tank function and stratified
Separator storage tank combined with stratification unit is ideal to hydraulically separate the heat source circuit and the heating circuit which results in easy control over the circulating pumps and improves their lifetime.
Its functionality is based on a hydraulic separator principle.

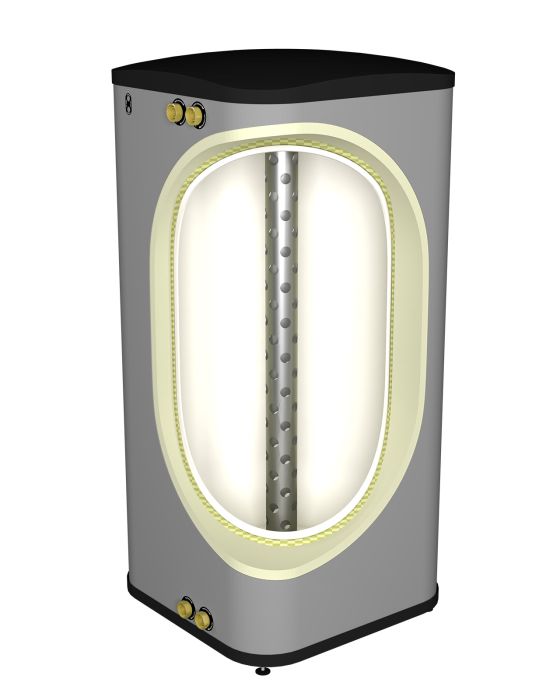

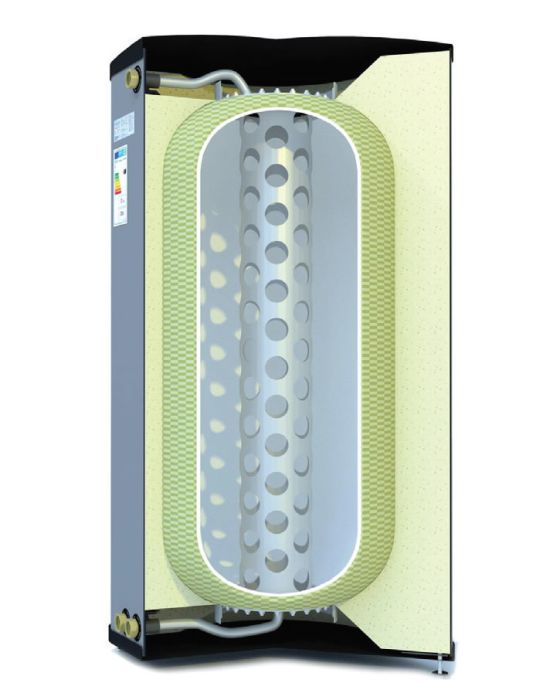

- device for stratification of the heat

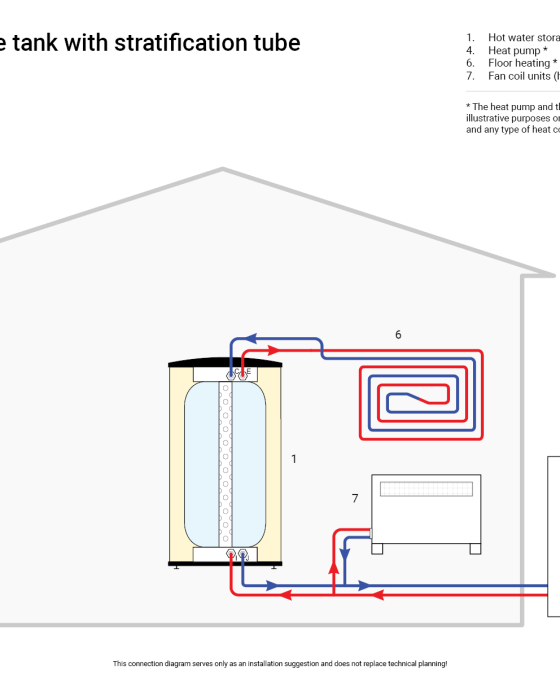

- hydraulic separator between the heat source circuit and the heating circuit
- equipped with two sleeves for sensors
- polyurethane high quality insulation, specific in very limited fire contribution, class B2 according to DIN 4102
- all flanges are replaceable and it can be modified to any other type of storage tank if necessary

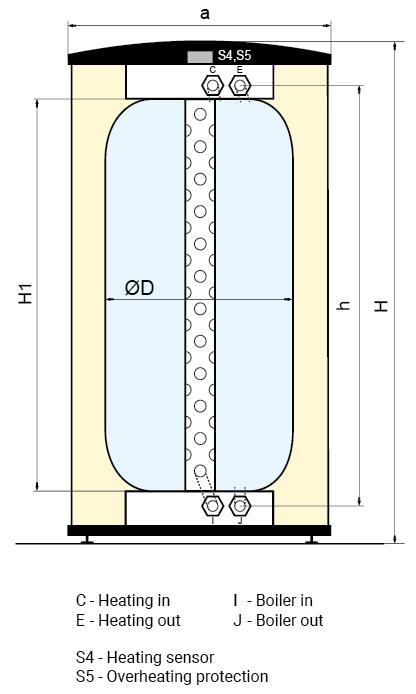

| UniQube SQ-BP | 310 | 440 | 800 | |
|---|---|---|---|---|
| D (diameter) | (mm) | 620 | 620 | 890 |
| H1 (height) | (mm) | 1300 | 1730 | 1730 |
| h (connectors) | (mm) | 1320 | 1750 | 1750 |
| H (height) | (mm) | 1570 | 2000 | 2000 |
| a (width) | (mm) | 725 | 725 | 960 |
| Pivot measurement | (mm) | 1730 | 2130 | 2219 |
| Net tank capacity | (l) | 310 | 440 | 800 |
| Approx. weight | (kg) | 85 | 106 | 127 |
| Connections C, E, I, J | 5/4" | |||
| Max. working temp. | (°C) | 90 | ||
| Max. working pressure | (bar) | 6 | ||
| Max. test pressure | (bar) | 9 | ||
| S4 Heating sensor position | (mm) | 140 | 140 | 140 |
| S5 Overheating protection | (mm) | 140 | 140 | 140 |

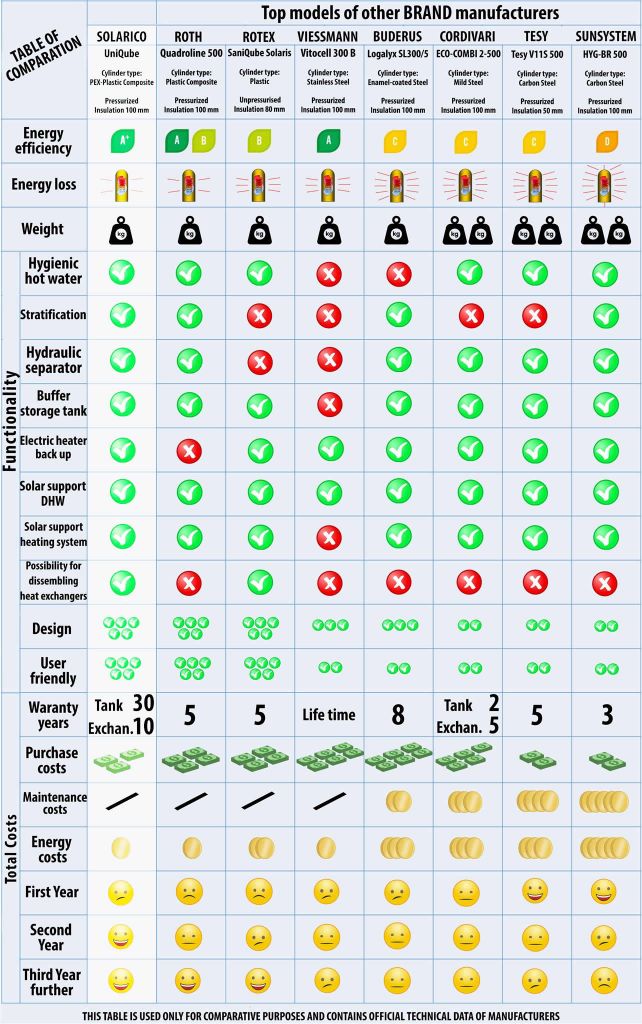

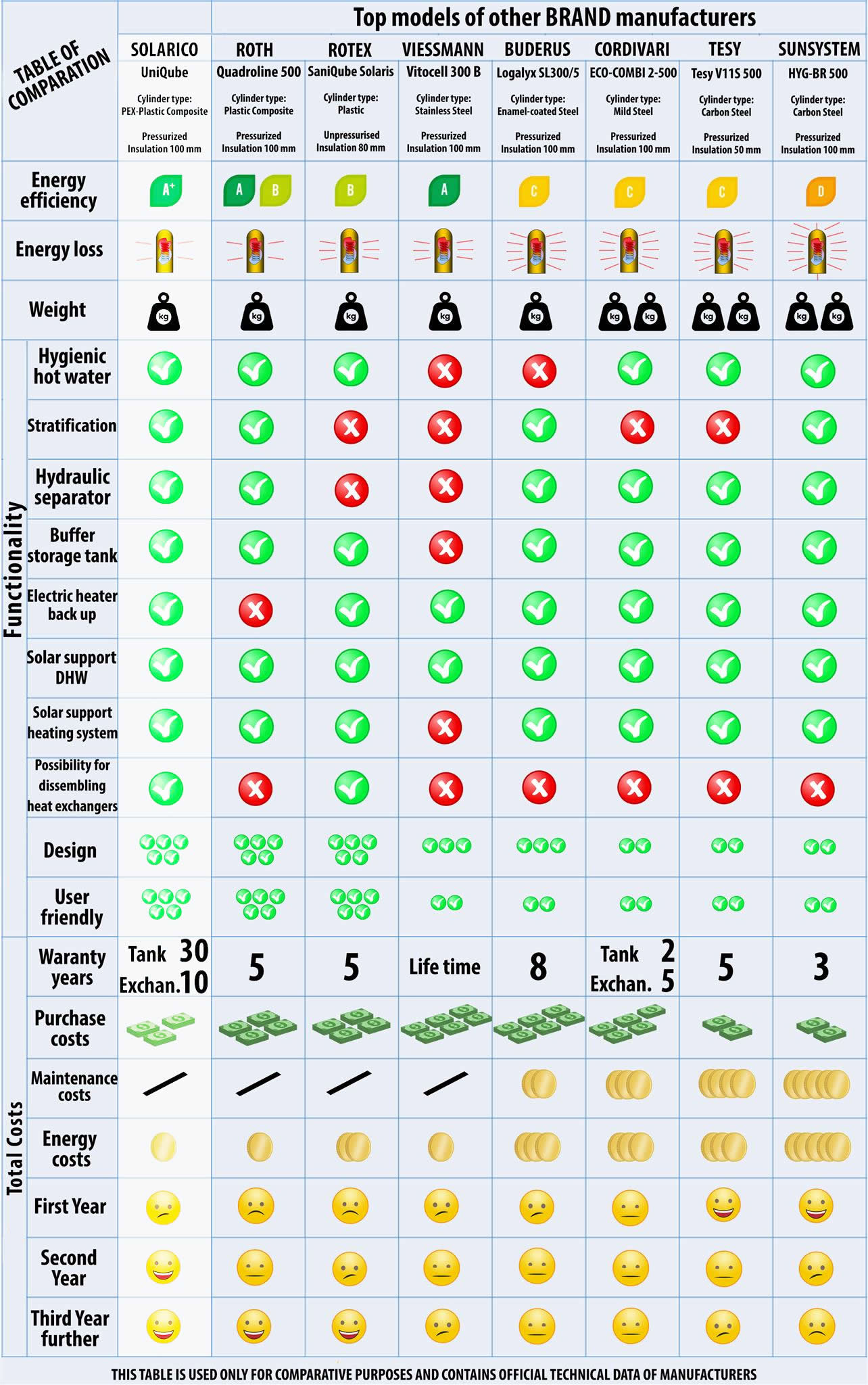

Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
