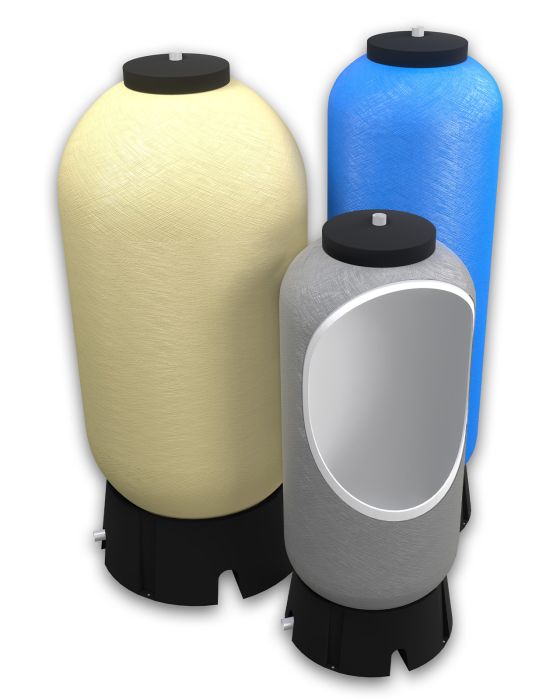

Composite Water Treatment and Pressure Tanks
Composite Water Treatment and Pressure Tanks
Wide range of applications
- Water treatment reservoir
- Compressed air tank
- Pressurized accumulators
- Booster accumulators for fresh water systems where there is not sufficient flow rate at the open taps. Pressurized accumulator is compensating it by carring water volume under the suitable pressure
Plastic-composite technology
The inner plastic reservoir is made of cross-linkable HDPE or LHDPE:
- It does not rust and is inactive in contact with a long list of chemicals
- Operates at temperatures up to 90⁰C
- Warranty - 30 years!
Composite filament winding is applied on the inner reservoir:
- It does not rust and is inactive in contact with a long list of chemicals
- Operates at temperatures up to 90⁰C.
- Operates at pressure up to 9 bars.
- Ability to short-run production - we do not ask for a minimum order quantity.
Water treatment tanks
We supply our clients with custom-designed reservoirs for water treatment with LHDPE liner inside. Our reservoirs are high quality, with long warranty term guaranteed by the manufacturer. We produce them in different colors and with or without insulation which prevents the condensation.
Compressed air tanks
Plastic composite tanks developed for accumulating compressed air, have huge advantages compared to conventional steel tanks. It is a lightweight reservoir easy to manipulate and install. It may be installed in the harshest environment because it will not rust in contact with water or many other condensates. These tanks are designed the way to be safer than steel tanks. In case of bursting the glass fibers will be torn without flying metal pieces.

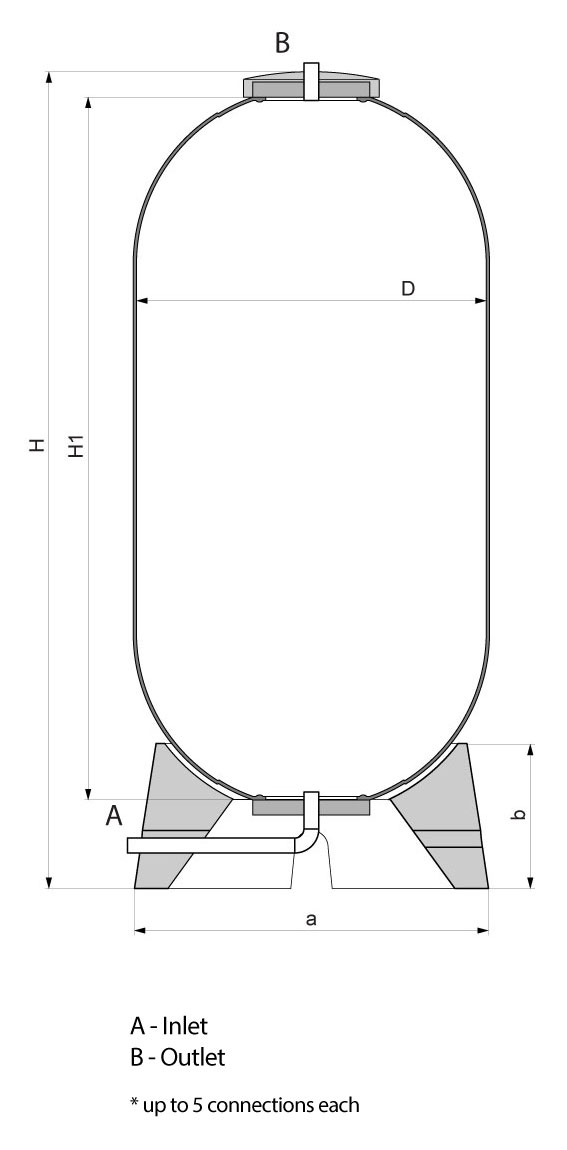

Composite Water Treatment and Pressure Tanks | 310 | 440 | 800 | |
---|---|---|---|---|
D (diameter) | (mm) | 620 | 620 | 880 |
H1 (height) | (mm) | 1300 | 1730 | 1730 |
H (height) | (mm) | 1500 | 1950 | 1950 |
a (width) | (mm) | 700 | 700 | 850 |
b (height) | (mm) | 300 | 300 | 350 |
Net tank capacity | (l) | 310 | 440 | 800 |
Approx. weight | (kg) | 60 | 75 | 94 |
Connections | 6/4” | |||
Max. working temp. | (°C) | 90 | ||
Max. working pressure | (bar) | 6 | ||
Max. test pressure | (bar) | 9 | ||
Water treatment reservoir | ||||
Working temp. | (°C) | 1÷50 | ||
Working pressure | (bar) | 10,5 (40 on demand) | ||
Test pressure | (bar) | 16 |
